NAVY µLift

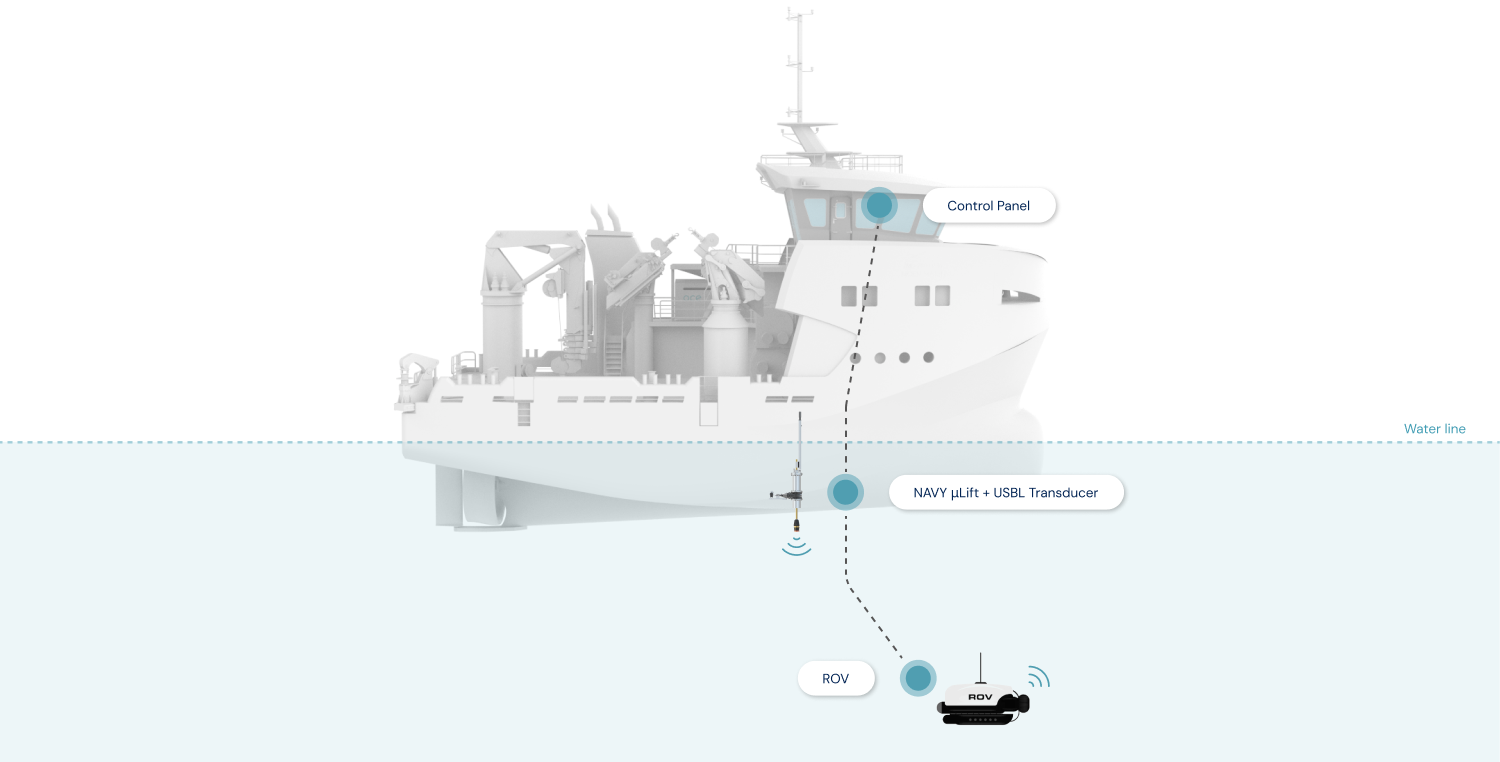

NAVY µLift is a lift for mounting a positioning system on vessels performing ROV operations. It positions the transducer accurately, retracts automatically when the vessel moves to reduce the risk of equipment damage, and is delivered with an automated valve and air-purging for dry storage of the transducer. The full system is operated from a single common panel from the position of choice.
- Accurate ROV positioning to 4000 m
- Automatic lift-up on vessel movement — protects the equipment
- Single common control panel for lift, valve and air-purge
Protects the transducer, extends when needed.
NAVY µLift automatically retracts the transducer into a protective housing during vessel transit and lowers it back into the water for ROV operations, keeping sensitive acoustic equipment safe from impact and turbulence while maintaining precise positioning.

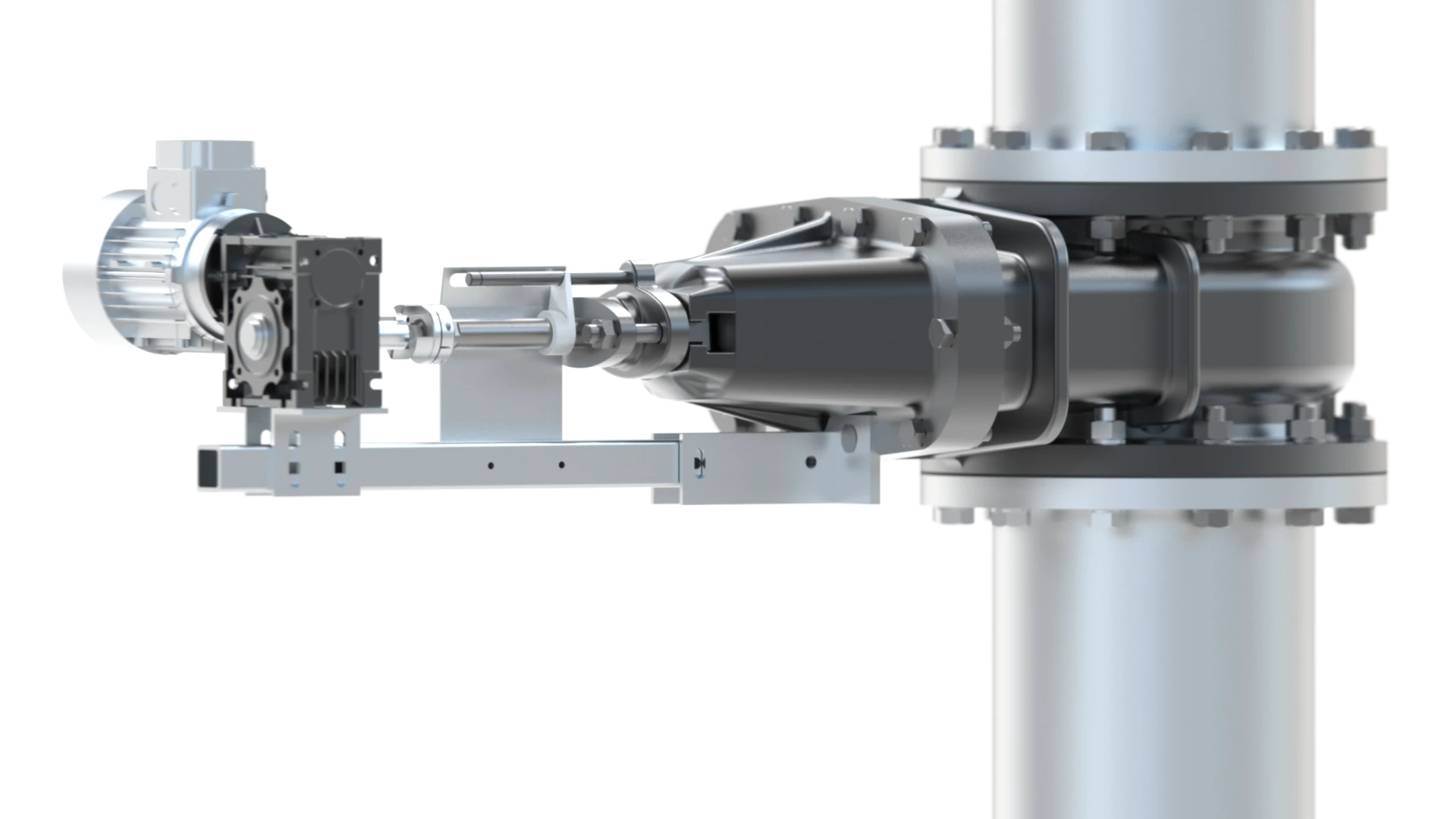

Robust, hull-certified valve construction
The µLift valve is a heavy-duty and robust construction, certified to be part of the vessel's hull. It closes the trunk completely when the transducer is retracted, and together with the automated air-purging it keeps the transducer dry and protected between operations.
Engineered for professional use.
Simple installation
Fits all types of vessels. NAVY assists with engineering together with the yard for optimal installation, plus operator training.
Automated valve
Delivered with automated valve and air-flushing for dry storage of the transducer.
One common panel
Lift, valve and air-purging are all operated from one shared display.
Calibrated once
Calibrated on first installation for accurate long-term positioning.
Customized stroke length

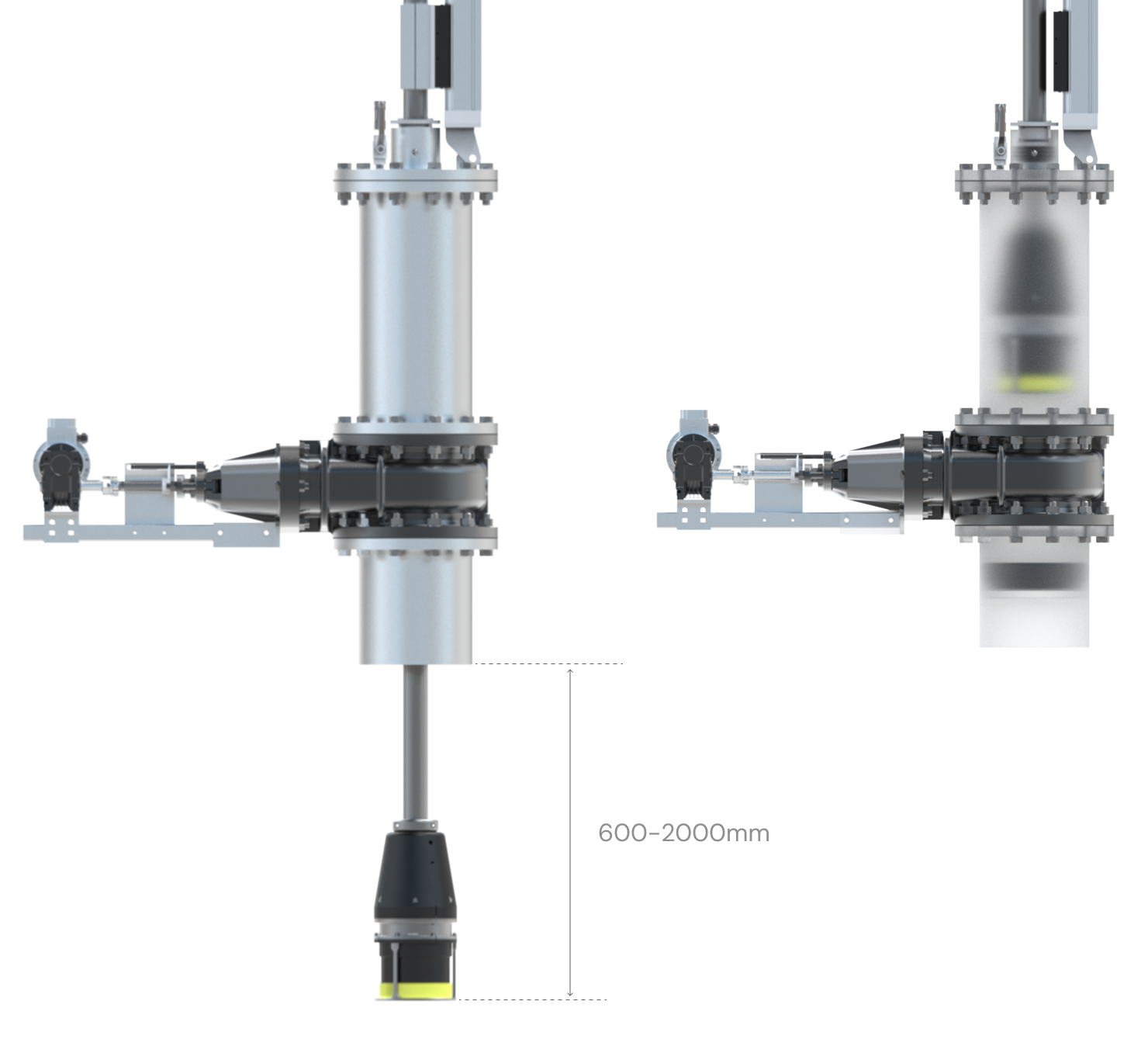

Standard stroke length is 1400 mm and can be customized from 600 to 2000 mm to suit the hull and the installation.
Flexible payload
Standard configuration for Kongsberg µPAP-200. Available as an option or customized for Sonardyne HPT-3000 or a subsea camera.
Delivery & support
NAVY follows the µLift through the whole life cycle — from project design and customization to sea trial, calibration and long-term service.
Engineering & project design
NAVY engineers the installation together with the yard, including customized stroke length for the hull and operation.
Placement analysis
Positioning of the trunk is analysed with regard to external noise sources for the best possible acoustic performance.
Installation & commissioning
Mechanical and electrical installation followed by full commissioning of lift, valve and air-purging.
Sea trial / SAT & calibration
Sea trial and site acceptance testing with calibration of the positioning system before handover.
Support & service
Continuous follow-up with both remote support and physical on-site support and service.
Specifications.
- Model
- NAVY µLift-1400
- Stroke length
- 1400 mm standard, customizable 600 – 2000 mm
- Transducer trunk length
- 600 or 1000 mm
- Positioning range
- 4000 m
- Standard compatibility
- Kongsberg µPAP-200
- Options
- Sonardyne HPT-3000, subsea camera
